LED Driver Replacement is a difficult process. When an LED fixture fails you need to either purchase a new fixture or replace the driver. In most scenarios it’s the LED driver that needs replacement (LED components have a longer shelf life).
LEDDOMAIN
Lighting
FOR TRAVELERS

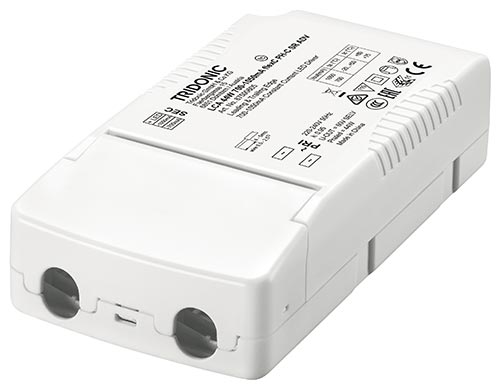

TRIDONIC 87501147 Driver LC 30W 350-700mA DA SC SNC4
SALE PRODUCTS
SR-2812Wi
* Pricing Available upon Request *
Product Description
4 zone wall mounted RGBW DMX512 master SR-2812 is a full touch controller designed in accordance with standard protocol DMX512(1990) and offers fast and accurate color tone adjustment and independent brightness dimming of each RGBW channel with unique design touch color wheel. Designed with touch color wheel, the DMX512 controller can adjust color tone and brightness for RGBW LEDs smoothly and accurately. The DMX512 master can control 4 zones with endless decoders in each zone. Independent smooth dimming of each RGBW channel enables the DMX master to achieve millions of colors. Italian/Australian and American size are optional besides standard 86*86mm size. The Model SR-2812Wi is designed with built-in WiFi, WiFi to DMX function, which enables the DMX master to be controlled by ipad, iphone or android phones.
Driver LC 10W 250mA fixC pc SR SNC2 10W 28003344 TRIDONIC
essence series
Product description- Dimmable constant current LED driver (SELV)
- Independent driver with strain-relief housing
- Extra flat housing for constrained installation conditions (small ceiling cut outs and low ceiling voids)
- Dimmable via leading edge and trailing edge phase dimmers
- Dimming range 5 to 100 % (depending on dimmer)
- For luminaires with F or M and MM as per EN 60598, VDE 0710 and VDE 0711
- Max. output power 10.5 W
- Output current 250 mA
- Nominal lifetime up to 50,000 h
- 5 years guarantee
DIN Rail DALI Master Controller SR-2300-USB | 70030140
key Features
- Central controller of a DALI system to control DALI control gears on the DALI
- Designed with built-in 100mA DAL/ PS to power the DALI circuit
-  Dip switches can be used to disable or enable DALI PS
- Once built-in DALI PS is disabled, the master controller can be connected to an eternal DALI PS
- Enables to automatically assign and manage addresses to up to 64 control gears
- Enables to control up to 64 control gears with 64 addresses
- Â Supports 5 DAL/ control gear device types: DT6, DT8 Tc, DT8 XY coordinate, 0T2 RGBINA, DT7 Switching actuator
- Â Supports DALI-2 type 301 push button input devices
- Enables to set up to 16 DALI scenes for each control gear
- Â Enables to assign each control gear to up to 16 DALE groups
- Enables to set up to 256 timer tasks
- Â Enables to set up to 4 types brightness fade and color fade cycle schedules
- Enables to set up to 4 Bionic color temperature schedules for the (CT control gears to mimic natural light change during 24 hours of a day (Human Centric Lighting)
- Â Designed with PC configuration software toot, enables to configure and read parameters of the master and control gears
- Â Can be easily mounted on 35mm standard DIN rail
LEDDOMAIN
ALUMINIUM PROFILE MANUFACTURER
The LED strip light's adhesive backing inside the aluminum channel, snap on the diffuser cover. Rigidly build anodized aluminum material, better heat dissipation, providing great protection for delicate LED strip lights. This kit includes the aluminum led channel, PC Opal diffuser, end caps and mounting clips , pre assembled plug & play connectors . Standard length 1m , 2m , 3m , customization option available as per project requirement .
