LED Driver Replacement is a difficult process. When an LED fixture fails you need to either purchase a new fixture or replace the driver. In most scenarios it’s the LED driver that needs replacement (LED components have a longer shelf life).
LEDDOMAIN
Lighting
FOR TRAVELERS
TRIDONIC 87501147 Driver LC 30W 350-700mA DA SC SNC4
SALE PRODUCTS
Dual Color Constant Current 700mA DT8 DALI Dimmer SR-2309FA7-CCT
* Pricing Available upon Request *
Product Description
SR-2309FA7-CCT is a 4 channel constant current 700mA dual color DT8 DALI dimmer that complies to the latest IEC 62386-209:2011 standard and supports DT8 device commands. This device is controlled via a single DALI address and compatible with universal DALI master controllers that supports DT8 commands. DT8 commands enable easy color temperature adjusting between warm white and cool white. DALI address can be manually assigned and displayed via digital display. It is configurable via DALI software tool and DALI USB interface.
SR-SV9030A-MW-V 0-1 OV BLE Ceiling Mounted Microwave Sensor Controller
Product Description
Energy Saving
• Low/High-end trimming • Daylight harvesting • Occupancy/Vacancy detection • Auto and advanced demand response programs • Time-of-Day dimming schedule • Energy monitoringCOMFORT & CONVENIENCE
• Advanced occupancy detections Light-level stability • Configurable dim-and-linger occupancy • Personalized setting profile • Work with kinetic switch keypad and dimmer wall station Multi-scenes controlSENSING
• Testing height: 2.5m • Detection area diameter: 12m@ 2.5m heightENVIRONMENT AND APPROBATION
• Operating temperature: -20° C to 55° C • Agency approbations: CE/Ro HS/UL Com ming soon ... • Warranty: 5 years
Driver LCA 100W 1100–2100mA one4all SR PRE 100W 28001571 TRIDONIC
premium series
Product description
- NEW: lumDATA (DALI-2 part ext. 251, 252 and 253)
- Independent dimmable constant current LED driver with strain-relief
- Dimmable via DALI / DALI-2
- Dimming range 1 – 100 % (whole operating window)
- Adjustable output current between 1,100 and 2,100 mA via ready2mains Programmer, I-SELECT 2 plugs or DALI
- Max. output power 100 W
- Up to 92 % efficiency
- Power input on stand-by < 0.2 W
- Nominal lifetime up to 100,000 h
- 5 years guarantee
SR-2830CDMX
* Pricing Available upon Request *
Product Description
RGB & dual color DMX512 master SR-2830CDMX is a full touch controller that complies with standard protocol DMX512(1990) and offers fast and accurate color tone adjustment and independent brightness dimming of RGB, warm white and cold white. Designed with touch color line in the middle, the DMX512 controller can adjust color tone, color temperature and brightness for RGB, WW and CW LED lights. Each controller can control 4 different zones separately or synchronously with endless decoders in each zone and 2 kelvin or scenes can be saved for each zone. Independent smooth dimming of R, G and B enables the DMX master to achieve millions of colors. 256 level brightness adjustment of each white enables the controller to achieve millions of color temperature. Humanized memory function enables the controller to remember the last scene after turn off or cut off. Humanization backlighting design enables the RGB controller to be found even in the dark.

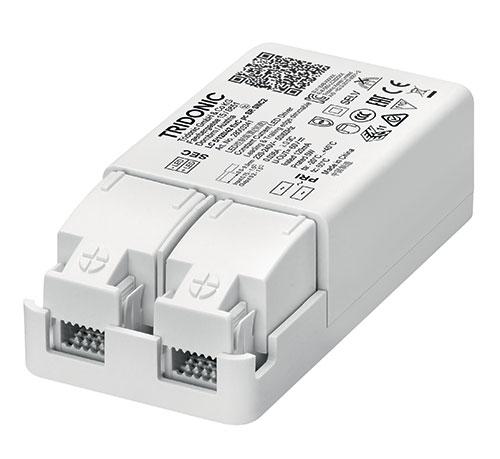

Driver LC 5W 120mA fixC pc SR SNC2 5W 28003341 TRIDONIC
essence series
Product description
- Dimmable constant current LED driver (SELV)
- Independent driver with strain-relief housing
- Extra flat housing for constrained installation conditions (small ceiling cut outs and low ceiling voids)
- Dimmable via leading edge and trailing edge phase dimmers
- Dimming range 5 to 100 % (depending on dimmer)
- For luminaires with F or M and MM as per EN 60598, VDE 0710 and VDE 0711
- Max. output power 5 W
- Output current 120 mA
- Nominal lifetime up to 50,000 h
- 5 years guarantee
LEDDOMAIN
ALUMINIUM PROFILE MANUFACTURER
The LED strip light's adhesive backing inside the aluminum channel, snap on the diffuser cover. Rigidly build anodized aluminum material, better heat dissipation, providing great protection for delicate LED strip lights. This kit includes the aluminum led channel, PC Opal diffuser, end caps and mounting clips , pre assembled plug & play connectors . Standard length 1m , 2m , 3m , customization option available as per project requirement .
