LED Driver Replacement is a difficult process. When an LED fixture fails you need to either purchase a new fixture or replace the driver. In most scenarios it’s the LED driver that needs replacement (LED components have a longer shelf life).
LEDDOMAIN
Lighting
FOR TRAVELERS
TRIDONIC 87501147 Driver LC 30W 350-700mA DA SC SNC4
SALE PRODUCTS
SR-2830B-DMX
* Pricing Available upon Request *
Product Description
RF cct LED controller SR-2830B is a full touch controller which offers fast and accurate color temperature adjustment and independent brightness dimming of each white. Designed with touch color line in the middle, the cct controller can adjust color temperature and brightness for natural white, warm white and cold white LEDs. Each controller can control 4 different zones separately or synchronously with endless receivers in each zone and 2 different kelvin or scenes can be saved for each zone. Independent smooth dimming of each white with 256 level brightness adjustment enables the LED controller to achieve millions of colors. Humanized memory function enables the controller remember the last Kelvin after turn off or cut off. While receivers are working with WiFi-RF converter, they can be controlled by WiFi via installing APP on IOS and Android systems.

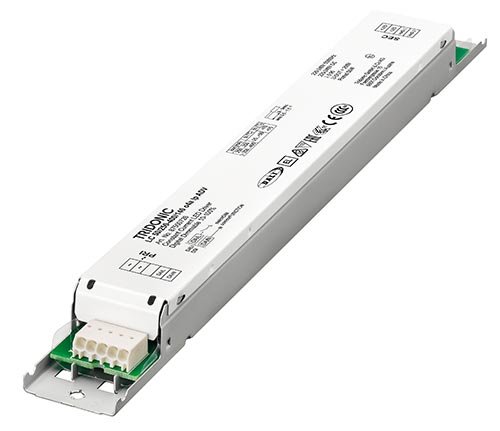

Driver LC 50W 250-400mA 140V o4a lp ADV 50W 87500726 TRIDONIC
advanced DALI non-SELV series
Product description- Dimmable built-in constant current LED driver
- Dimming range 10 – 100 % (min. 25 mA)
- For luminaires of protection class I and protection class II
- Temperature protection as per EN 61347-2-13 C5e
- Adjustable output current between 250 and 400 mA via I-SELECT 2 plugs
- Max. output power 50 W
- Up to 91 % efficiency
- Power input on stand-by < 0.4 W
- Nominal lifetime up to 100,000 h
- 5 years guarantee
COB-Cree 2530
* Pricing Available upon Request *
Product Description
The XLamp® CXA2530 LED array expands
Cree LED’s family of high‑flux, multi‑die
arrays, offering high performance in an
easy‑to‑use platform. With XLamp LED
lighting‑class reliability, the CXA2530’s
uniform emitting surface enables both
directional and non‑directional lighting
applications and luminaire designs.
Available in 2‑step and 4‑step color
consistency, and featuring a 19‑mm optical
source, the CXA2530 brings new levels of
flux and efficacy to this form factor.
Mini Size Constant Voltage DALI & PUSH Dimmer SR-2303 (Push Dim)
* Pricing Available upon Request *
Product Description
This DALI & PUSH dimmer is a DALI-2, CE and FC certified device, coupled with 12-24VDC power input. This device is in compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2, and can match all DALI systems in the market, so that you can rest assured to use it. With one DALI address input and one channel output, this dimmer is mini in size, high in output current, and its current is 10A per channel. Moreover, its dim function can directly support AC high voltage input PUSH switch. This product has both DALI dimmer and PUSH dimmer functions while connected with DALI master controllers and AC PUSH switches respectively.
Driver LC 53W 1130–1200mA 0-10V fixC lp SNC UNV 53W 87500861 TRIDONIC
Linear essence series (US applications)
Product description
- Constant current LED driver
- Only for US applications
- Dimmable via 0 ... 10 V
- Dimming range 10 to 100 %
- Class 2
- FCC Part 15
- Meets UL 8750 SF3.1
- Meets DesignLights Consortium 4.3
- Temperature protection as per UL8750/UL Recognized
- Adjustable output current 1,130 or 1,200 mA
- Max. output power 53 W
- Nominal lifetime up to 50,000 h
- 5 years guarantee
LEDDOMAIN
ALUMINIUM PROFILE MANUFACTURER
The LED strip light's adhesive backing inside the aluminum channel, snap on the diffuser cover. Rigidly build anodized aluminum material, better heat dissipation, providing great protection for delicate LED strip lights. This kit includes the aluminum led channel, PC Opal diffuser, end caps and mounting clips , pre assembled plug & play connectors . Standard length 1m , 2m , 3m , customization option available as per project requirement .
