LED Driver Replacement is a difficult process. When an LED fixture fails you need to either purchase a new fixture or replace the driver. In most scenarios it’s the LED driver that needs replacement (LED components have a longer shelf life).
LEDDOMAIN
Lighting
FOR TRAVELERS
TRIDONIC 87501147 Driver LC 30W 350-700mA DA SC SNC4
SALE PRODUCTS
RGBW DT8 DALI Dimmer SR-2309FA-RGBW
* Pricing Available upon Request *
Product Description
SR-2309FA-RGBW is a 4 channel constant voltage RGBW DT8 DALI dimmer that complies to the latest IEC 62386-209:2011 standard and supports DT8 device commands. Color control is as defined in the DALI specification for device type 8, color type RGBW or XY coordinates can be preset by factory setting. All output channels of this device is controlled via a single DALI address and it is compatible with universal DALI master controllers that supports DT8 commands. DT8 commands enable easy RGB color adjusting. DALI address can be manually assigned and displayed via digital display. It is configurable via DALI software tool and DALI USB interface.
Driver LC 7W 150mA fixC pc SR SNC2 7W 28003342 TRIDONIC
essence series
Product description
- Dimmable constant current LED driver (SELV)
- Independent driver with strain-relief housing
- Extra flat housing for constrained installation conditions (small ceiling cut outs and low ceiling voids)
- Dimmable via leading edge and trailing edge phase dimmers
- Dimming range 5 to 100 % (depending on dimmer)
- For luminaires with F or M and MM as per EN 60598, VDE 0710 and VDE 0711
- Max. output power 6.3 W
- Output current 150 mA
- Nominal lifetime up to 50,000 h
- 5 years guarantee

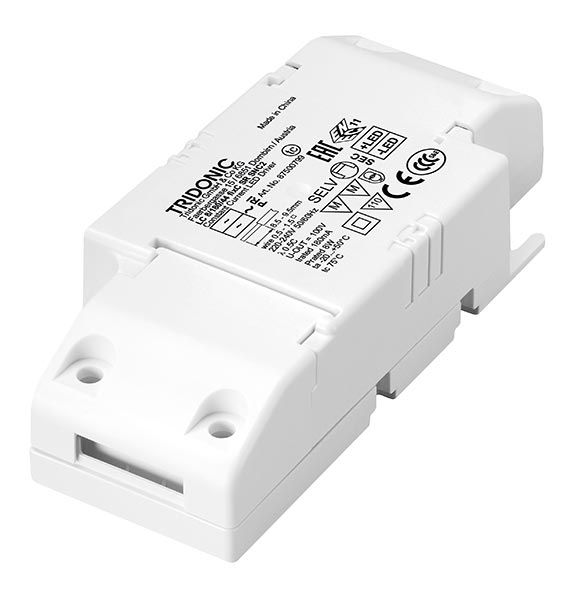

Driver LC 8W 200mA fixC SR SNC2 8W 87500800 TRIDONIC
essence series
Product description
- Independent LED driver with cable clamps
- Extra flat housing for constrained installation conditions (small ceiling cut outs and low ceiling voids)
- For luminaires with M and MM as per EN 60598, VDE 0710 and VDE 0711
- Temperature protection as per EN 61347-2-13 C5e
- Output current 180 or 200 mA
- Max. output power 8 W
- Nominal lifetime up to 50,000 h
- 5 years guarantee
30W DALI LED Driver (Constant Voltage) SRP-2305-24-30CV
* Pricing Available upon Request *
Product Description
This 100W DALI DT8 Dimmable LED Driver is in compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2, IEC 62386-209:2011, and compatible with universal DALI masters that support DT8 commands. With built-in DALI2 interface, this DALI DT8 device is controlled via a single DALI address. Moreover, this device is equipped with 2-channel DC 24V constant voltage output and high power factor and efficiency. Its dimming method is PWM, with smooth and deep dimming to 0.1%. Besides, this driver has error report function, and supports DALI DT8 Tc type. Its protection grade is IP20, which is suitable for indoor LED lighting applications, with 5-year warranty.
Constant Voltage 1 Channel DALI Dimmable SR-2303S (Push Dim)
* Pricing Available upon Request *
Product Description
This DALI & PUSH dimmer is a DALI-2, CE and FC certified device, coupled with 12-36VDC power input. This device is in compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2, and can match all DALI systems in the market, so that you can rest assured to use it. With one DALI address input and one channel PWM output, this dimmer has both DALI dimmer and PUSH dimmer functions while connected with DALI master controllers and AC PUSH switches respectively.
LEDDOMAIN
ALUMINIUM PROFILE MANUFACTURER
The LED strip light's adhesive backing inside the aluminum channel, snap on the diffuser cover. Rigidly build anodized aluminum material, better heat dissipation, providing great protection for delicate LED strip lights. This kit includes the aluminum led channel, PC Opal diffuser, end caps and mounting clips , pre assembled plug & play connectors . Standard length 1m , 2m , 3m , customization option available as per project requirement .
