LED Driver Replacement is a difficult process. When an LED fixture fails you need to either purchase a new fixture or replace the driver. In most scenarios it’s the LED driver that needs replacement (LED components have a longer shelf life).
LEDDOMAIN
Lighting
FOR TRAVELERS
TRIDONIC 87501147 Driver LC 30W 350-700mA DA SC SNC4
SALE PRODUCTS

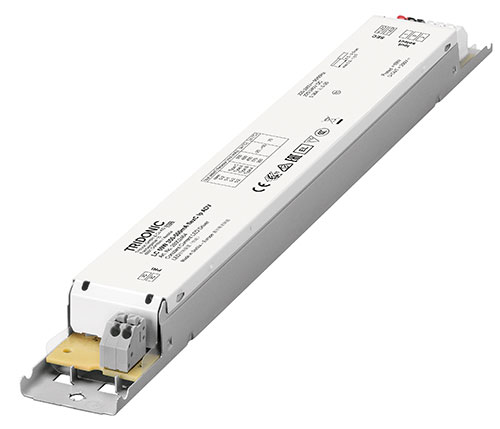

Driver LC 69W 350-500mA flexC lp ADV 69W 28002464 TRIDONIC
advanced series non-SELV
Product description
- LED Constant current LED driver for luminaire installation
- New version DC operating with EL marking
- For luminaires of protection class I and protection class II
- Temperature protection as per EN 61347-2-13 C5e
- Output current adjustable between 350 – 500 mA
- Max. output power 69 W
- Up to 91 % efficiency
- Nominal lifetime up to 100,000 h
- 5 years guarantee
DUAL WHITE 14.4W/M LED STRIP LIGHT
Product description
- Wattage: 14.4W/M
- SMD5050
- Lumens: 926lm/m
- Voltage: DC24V
- LED Qty: 60leds/m
- Mains Frequency: 50/60 Hz
- CCT: 3000K + 6000K
- CRI: >80
- Beam Angle: 120°
- Power Factor: 0.9
- IP Rating: IP20
- Dimension: 5000x10x2.5mm
- With 3M adhesive tape back, easy for installation
- Options: ON/OFF, 0-10/DALI Dimmable
- Operating Temperature: -20°C to + 50°C
- Lifetime: 50,000 Hrs.
- Certifications: CE, RoHS
SR-2830B-DMX
* Pricing Available upon Request *
Product Description
RF cct LED controller SR-2830B is a full touch controller which offers fast and accurate color temperature adjustment and independent brightness dimming of each white. Designed with touch color line in the middle, the cct controller can adjust color temperature and brightness for natural white, warm white and cold white LEDs. Each controller can control 4 different zones separately or synchronously with endless receivers in each zone and 2 different kelvin or scenes can be saved for each zone. Independent smooth dimming of each white with 256 level brightness adjustment enables the LED controller to achieve millions of colors. Humanized memory function enables the controller remember the last Kelvin after turn off or cut off. While receivers are working with WiFi-RF converter, they can be controlled by WiFi via installing APP on IOS and Android systems.
Driver LCA 10W 150–400mA one4all C PRE 10W 28000663 TRIDONIC
premium series
Product description
- NEW: lumDATA (DALI-2 part ext. 251, 252 and 253)
- Dimmable built-in constant current LED driver
- Dimming range 1 to 100 %
- For luminaires of protection class I and protection class II
- Output current adjustable between 150 – 400 mA via ready2mains Programmer, I-SELECT 2 plugs or DALI
- Max. output power 10 W
- Up to 82 % efficiency
- Power input on stand-by < 0.2 W
- Nominal lifetime up to 100,000 h
- 5 years guarantee
Driver LC 15W 350mA fixC pc SR SNC2 15W 28003345 TRIDONIC
essence series
Product description
- Dimmable constant current LED driver (SELV)
- Independent driver with strain-relief housing
- Extra flat housing for constrained installation conditions (small ceiling cut outs and low ceiling voids)
- Dimmable via leading edge and trailing edge phase dimmers
- Dimming range 5 to 100 % (depending on dimmer)
- For luminaires with F or M and MM as per EN 60598, VDE 0710 and VDE 0711
- Max. output power 14.7 W
- Output current 350 mA
- Nominal lifetime up to 50,000 h
- 5 years guarantee
LEDDOMAIN
ALUMINIUM PROFILE MANUFACTURER
The LED strip light's adhesive backing inside the aluminum channel, snap on the diffuser cover. Rigidly build anodized aluminum material, better heat dissipation, providing great protection for delicate LED strip lights. This kit includes the aluminum led channel, PC Opal diffuser, end caps and mounting clips , pre assembled plug & play connectors . Standard length 1m , 2m , 3m , customization option available as per project requirement .
