LED Driver Replacement is a difficult process. When an LED fixture fails you need to either purchase a new fixture or replace the driver. In most scenarios it’s the LED driver that needs replacement (LED components have a longer shelf life).
LEDDOMAIN
Lighting
FOR TRAVELERS
TRIDONIC 87501147 Driver LC 30W 350-700mA DA SC SNC4
SALE PRODUCTS
SR-SBP2801-BLE
* Pricing Available upon Request *
Product Description
SR-SBP2801-BLE enables the realization of energy harvesting wireless switches for lighting, build- ing or industrial automation control systems using Bluetooth® low energy technology.
SR-SBP2801-BLE is mechanically compatible with existing switch elements enabling quick integration into a wide range of designs. Key applications are wall-mounted or portable switches either with up to two rockers or up to four push buttons.
SR-SBP2801-BLE pushbutton transmitters are self-powered (no batteries) and fully maintenance- free. They can therefore be used in all environments including locations that are difficult to reach or within hermetically sealed housings. The required energy is generated by an electro-dynamic energy transducer actuated by an energy bow located on the left and right of the module. This energy bow which can be pushed from outside the module by an appro- priate pushbutton or switch rocker.
When the energy bow is pushed down or released, electrical energy is created and a radio telegram according to the Bluetooth® low energy standard is transmitted. This radio telegram transmits the status of all four contact nipples when the energy bow was pushed down or released. SR-SBP2801-BLE radio telegrams are protected with AES-128 security based on a device-unique private key.
Universal series DALI dimmer SR-2302B(WP)
* Pricing Available upon Request *
Product Description
The DALI Dimmer SR-2302B is a constant voltage dimming controller with 4 channel, 5A per channel output, which complies to standard DALI protocol with 1 DALI address to control 4 channels synchronously. The DALI address can be manually assigned and shown on the numeric digital display or automatically assigned by master controllers. 1 DALI address is available for 4 channels to work synchronously. 0%-100% smooth dimming can be achieved by the DALI dimmer via logarithmic dimming, which is perfect for human's vision.

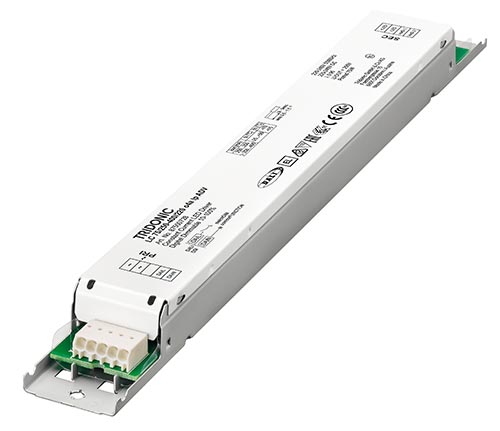

Driver LC 53W 250-350mA flexC lp ADV 53W 28002468 TRIDONIC
advanced series non-SELV Product description
- LED Constant current LED driver for luminaire installation
- New version DC operating with EL marking
- For luminaires of protection class I and protection class II
- Temperature protection as per EN 61347-2-13 C5e
- Output current adjustable between 250 – 350 mA
- Max. output power 53 W
- Up to 90.5 % efficiency
- Nominal lifetime up to 100,000 h
- 5 years guarantee
LEDDOMAIN
ALUMINIUM PROFILE MANUFACTURER
The LED strip light's adhesive backing inside the aluminum channel, snap on the diffuser cover. Rigidly build anodized aluminum material, better heat dissipation, providing great protection for delicate LED strip lights. This kit includes the aluminum led channel, PC Opal diffuser, end caps and mounting clips , pre assembled plug & play connectors . Standard length 1m , 2m , 3m , customization option available as per project requirement .
