Driver LC 60W 24V one4all lp PRE 60W 28003521 TRIDONIC
premium series 24 V – dimmable (IP20) Product description
- NEW: lumDATA (Luminaire data, Energy reporting and Diagnostics & Maintenance)
- Dimmable 24 V constant voltage LED driver for flexible constant voltage strips
- one4all interface enables different dimming options
- Dimming range 1 to 100 %
- No additional external dimmer is needed
- Suitable for emergency escape lighting systems acc. to EN 50172
- Nominal lifetime up to 50,000 h
- 5 years guarantee
Driver LC 60W 700mA fixC C SNC 60W 87500569 TRIDONIC
essence series
Product description
- Fixed output built-in LED driver
- Constant current LED driver
- For luminaires of protection class I and protection class II
- Temperature protection as per EN 61347-2-13 C5e
- KC certificate for LC 60W 1400mA fixC C SNC
- Output current 1,200, 700 or 1,400 mA
- Max. output power 50 or 60 W
- Nominal lifetime up to 50,000 h
- 5 years guarantee
Driver LC 60W 900–1750mA flexC C EXC 60W 28000696 TRIDONIC
Driver LC 65W 200-350mA flexCC lp SNC3 65W 28003378 TRIDONIC
essence series non-SELV
Product description
- LED Constant current LED driver for luminaire installation
- For luminaires of protection class I and protection class II
- Temperature protection as per EN 61347-2-13 C5e
- Selectable fixed output current 350, 300, 250 and 200 mA
- Max. output power 65.1 W
- Up to 92 % efficiency
- Nominal lifetime up to 50,000 h
- 5 years guarantee
Driver LC 69W 350-500mA flexC lp ADV 69W 28002464 TRIDONIC
advanced series non-SELV
Product description
- LED Constant current LED driver for luminaire installation
- New version DC operating with EL marking
- For luminaires of protection class I and protection class II
- Temperature protection as per EN 61347-2-13 C5e
- Output current adjustable between 350 – 500 mA
- Max. output power 69 W
- Up to 91 % efficiency
- Nominal lifetime up to 100,000 h
- 5 years guarantee

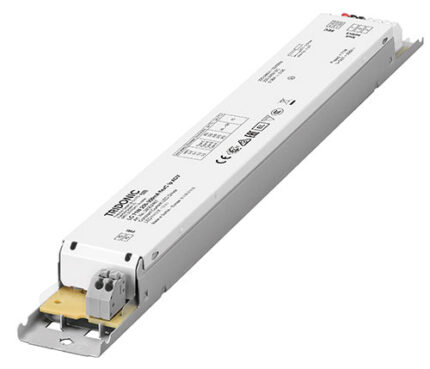

Driver LC 71W 250-350mA flexC lp ADV 71W 28002467 TRIDONIC
advanced series non-SELV
Product description
- LED Constant current LED driver for luminaire installation
- New version DC operating with EL marking
- For luminaires of protection class I and protection class II
- Temperature protection as per EN 61347-2-13 C5e
- Output current adjustable between 250 – 350 mA
- Max. output power 71 W
- Up to 91.5 % efficiency
- Nominal lifetime up to 100,000 h
- 5 years guarantee

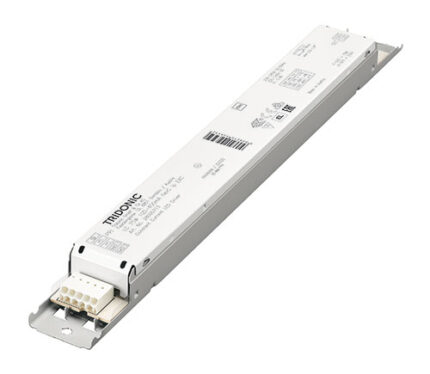

Driver LC 75W 100–400mA flexC lp EXC 75W 28000713 TRIDONIC
excite series non-SELV Product description
- Constant current LED driver for luminaire installation
- For luminaires of protection class I and protection class II
- Adjustable output current between 100 and 400 mA via ready2mains Programmer or I-SELECT 2 plugs
- Max. output power 75 W
- Up to 94 % efficiency
- Nominal lifetime up to 100,000 h
- 5 years guarantee
Driver LC 75W 24V IP67 L EXC UNV 75W 28003296 TRIDONIC

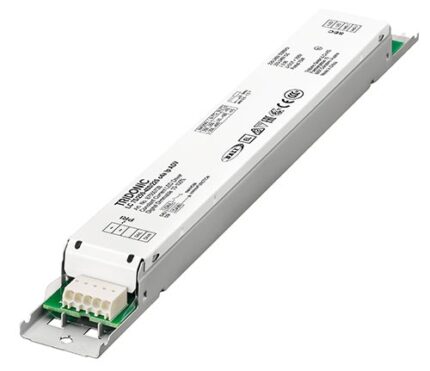

Driver LC 75W 250-400mA 220V o4a lp ADV 75W 87500728 TRIDONIC
advanced DALI non-SELV series
Product description- Dimmable built-in constant current LED driver
- Dimming range 10 – 100 % (min. 25 mA)
- For luminaires of protection class I and protection class II
- Temperature protection as per EN 61347-2-13 C5e
- Adjustable output current between 250 and 400 mA via I-SELECT 2 plugs
- Max. output power 75 W
- Up to 93 % efficiency
- Power input on stand-by < 0.4 W
- Nominal lifetime up to 100,000 h
- 5 years guarantee
Driver LC 75W 250–550mA 1-10V lp EXC 75W 28001982 TRIDONIC
excite 1–10V non-SELV series
Product description
- Constant current LED driver for luminaire installation
- Dimmable via 1 ... 10 V interface
- Dimming range 10 – 100 % (Depending on load, for details refer to chapter 4.7 Dimming in data sheet.)
- For luminaires of protection class I and protection class II
- Adjustable output current between 250 and 550 mA via ready2mains Programmer or I-SELECT 2 plugs
- Max. output power 75 W
- Up to 94 % efficiency
- Nominal lifetime up to 100,000 h
- 5 years guarantee
Driver LC 75W 250–550mA flexC lp EXC 75W 28001808 TRIDONIC
excite series non-SELV
Product description
- Constant current LED driver for luminaire installation
- For luminaires of protection class I and protection class II
- Adjustable output current between 250 and 550 mA via ready2mains Programmer or I-SELECT 2 plugs
- Max. output power 75 W
- Up to 94 % efficiency
- Nominal lifetime up to 100,000 h
- 5 years guarantee

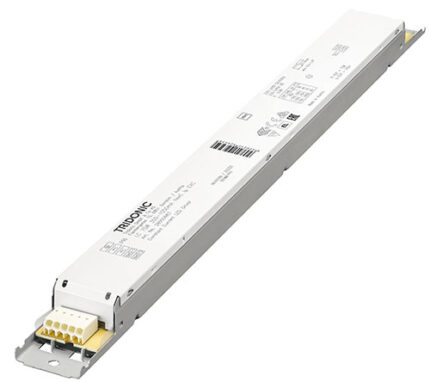

Driver LC 75W 350–1050mA flexC lp EXC 75W 28000683 TRIDONIC
excite series non-SELV
Product description
- Constant current LED driver for luminaire installation
- For luminaires of protection class I and protection class II
- Adjustable output current between 350 and 1,050 mA via ready2mains Programmer or I-SELECT 2 plugs
- Max. output power 75 W
- Up to 92 % efficiency
- Nominal lifetime up to 100,000 h
- 5 years guarantee
