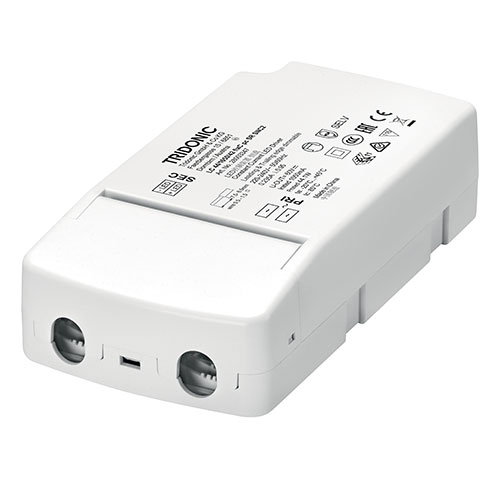

Driver LC 44W 1050mA fixC pc SR SNC2 44W 28003347 TRIDONIC
AED0.00
essence series
Product description
- Dimmable constant current LED driver (SELV)
- Independent driver with strain-relief housing
- Extra flat housing for constrained installation conditions (small ceiling cut outs and low ceiling voids)
- Dimmable via leading edge and trailing edge phase dimmers
- Dimming range 5 to 100 % (depending on dimmer)
- For luminaires with F or M and MM as per EN 60598, VDE 0710 and VDE 0711
- Max. output power 44.1 W
- Output current 1,050 mA
- Nominal lifetime up to 50,000 h
- 5 years guarantee
Description
Housing properties
- Casing: polycarbonate, white
- Type of protection IP20
- Push-in terminals
- 2 separate strain relief parts for input and output cables with highly robust clamps
Functions
- Overload protection
- Short-circuit protection
- No-load protection
- No output current overshoot at mains on/off
Reviews (0)
Shipping & Delivery
Data Sheets
Related products
Driver LC 21W 400–515mA 0-10V fixC lp SNC UNV 21W 87500902 TRIDONIC
Linear essence series (US applications)
Product description
- Constant current LED driver
- Only for US applications
- Dimmable via 0 ... 10 V
- Dimming range 10 to 100 %
- Class 2
- FCC Part 15
- Meets UL 8750 SF3.1
- Meets DesignLights Consortium 4.3
- Temperature protection as per UL8750/UL Recognized
- Adjustable output current 400 or 515 mA
- Max. output power 21 W
- Nominal lifetime up to 50,000 h
- 5 years guarantee
Driver LCA 35W 150–700mA one4all lp PRE 35W 28000654 TRIDONIC
premium series SELV
Product description
- NEW: lumDATA (DALI-2 part ext. 251, 252 and 253)
- Dimmable built-in constant current LED driver
- Dimming range 1 to 100 %
- For luminaires of protection class I and protection class II
- Output current adjustable between 150 – 700 mA via ready2mains Programmer, I-SELECT 2 plugs or DALI
- Max. output power 35 W
- Up to 88 % efficiency
- Power input on stand-by < 0.2 W
- Nominal lifetime up to 100,000 h
- 5 years guarantee
Driver LCA 75W 100–400mA one4all lp PRE 75W 28000657 TRIDONIC
premium series non-SELV
Product description
- NEW: lumDATA (DALI-2 part ext. 251, 252 and 253)
- Dimmable built-in constant current LED driver
- Output current adjustable between 100 – 400 mA
- Dimming range 1 to 100 %
- For luminaires of protection class I and protection class II
- Max. output power 75 W
- Up to 92 % efficiency
- Power input on stand-by < 0.15 W
- Nominal lifetime up to 100,000 h
- 5 years guarantee
Driver LCA 75W 350–1050mA one4all lp PRE 75W 28000659 TRIDONIC
premium series non-SELV
Product description- NEW: lumDATA (DALI-2 part ext. 251, 252 and 253)
- Dimmable built-in constant current LED driver
- Dimming range 1 to 100 %
- For luminaires of protection class I and protection class II
- Output current adjustable between 350 – 1,050 mA via ready2mains Programmer, I-SELECT 2 plugs or DALI
- Max. output power 75 W
- Up to 92 % efficiency
- Power input on stand-by < 0.16 W
- Nominal lifetime up to 100,000 h
- 5 years guarantee
Driver LCA 75W 900–1800mA one4all lp PRE 75W 28000660 TRIDONIC
premium series SELV
Product description
- NEW: lumDATA (DALI-2 part ext. 251, 252 and 253)
- Dimmable built-in constant current LED driver
- Dimming range 1 to 100 %
- For luminaires of protection class I and protection class II
- Output current adjustable between 900 – 1,800 mA
- Max. output power 75 W
- Up to 91 % efficiency
- Power input on stand-by < 0.15 W
- Nominal lifetime up to 100,000 h
- 5 years guarantee
Driver LCBI 20W 350mA PHASE-CUT/1–10V SR 20W 87500276 TRIDONIC
advanced series
Product description- Independent dimmable LED driver
- Constant current LED driver
- Output current 350 or 500 mA
- Output power 19 W
- Nominal lifetime up to 50,000 h
- SELV
- Dimmable via leading edge and trailing edge phase dimmers
- Dimmable via 1 ... 10 V
- Output dimmed analogue (current amplitude)
- Dimming range typ. 10 to 100 % (depending on dimmer)
- For luminaires of protection class I and protection class II
- For luminaires with M and MM as per EN 60598, VDE 0710 and VDE 0711
- Temperature protection as per EN 61347-2-13 C5e
- 5 years guarantee
