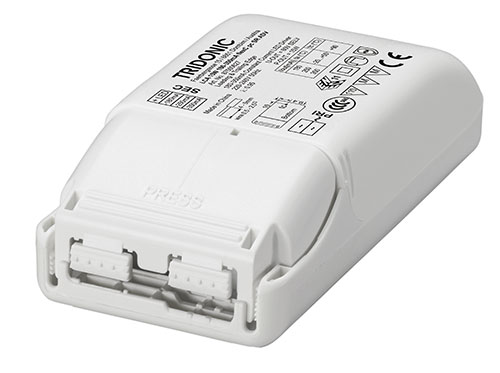

Driver LCA 15W 180-350mA flexC PH-C SR ADV 15W 87500627 TRIDONIC

AED0.00

advanced series

Product description

  • Dimmable constant current LED driver (SELV)
  • Independent LED driver with cable clamps
  • Dimmable via leading edge and trailing edge phase dimmers
  • Dimming range 5 to 100 % (depending on dimmer)
  • For luminaires of protection class I and protection class II
  • For luminaires with M and MM as per EN 60598, VDE 0710 and VDE 0711
  • Temperature protection as per EN 61347-2-13 C5e
  • Selectable output current between 180, 250 and 350 mA
  • Max. output power 15 W
  • Up to 81 % efficiency
  • Nominal lifetime up to 50,000 h
  • 5 years guarantee
Compare
Add to wishlist
SKU: 87500627 Category: Tag:
Description

Housing properties

  • Casing: polycarbonate, white
  • Type of protection IP20

Interfaces

  • Terminal blocks: 0° screw terminals

Functions

  • Overload protection
  • Short-circuit protection
  • No-load protection
  • Overtemperature protection
  • Burst protection voltage 1 kV
  • Surge protection voltage 1 kV (L to N)
  • Surge protection voltage 2 kV (L/N to earth)
Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “Driver LCA 15W 180-350mA flexC PH-C SR ADV 15W 87500627 TRIDONIC”

Your email address will not be published. Required fields are marked *

Shipping & Delivery
Data Sheets

Driver_LCA_15W_180-350mA_flexC_pc_SR_ADV_en
