SR-2834-5C-DMX

SR-SB1029-5C

AED0.00

* Pricing Available upon Request *

Product Description

SR-SB1029-5C is a DIM CCT RGBW RGB+CCT 4 in 1 constant voltage bluetooth LED dimmer with 5 channels output to control single color, tunable white, RGBW and RGB+CCT LED lighting, and different lighting types can be selected through dip switches. The bluetooth LED driver is designed with bluetooth and RF control interface and with flexible control options including bluetooth APP, RF remote. In addition, cloud control is ready for the LED controller, which enables remote access. Thanks to the cloud, it can communicate and work with the mainstream popular smart home platforms such as Amazon Alexa, Google Assistant and Yandex Alisa, which enable users to control it through voice commands and free the hands.

It is designed with DC 12-24V input and 5 channel constant voltage output, max. output current per channel can be up to 4A, which means a total output of up to 480W.

Compare
Add to wishlist
SKU: SR-SB1029-5C Category: Tag:
Description

Key Features

  • 4 in 1 universal RF+Bluetooth LED controller, radio frequency: 2.4GHz
  • 4 different device modes DIM, CCT, RGBW and RGB+CCT in 1 controller, and selectable by dial switch
  • Enables to control ON/OFF, light intensity, color temperature, RGB color of connected LED lights
  • Ultra powerful to control Single Color, CCT, RGBW, RGB+CCT LED strips
  • Controlled through both smart App and remote controls, no gateway required for local control
  • Easy & quick pairing to the smart App by simply pushing the Prog. button
  • Mesh network, much longer control distance, transmits received signal to neighbor devices
  • Up to 30m transmission distance between every two neighbor devices
  • Encrypted two-way communication, quick status feedback, safe & reliable data transmission
  • Compatible with universal RF+Bluetooth remotes, each LED controller can pair to max. 8 remotes
  • Cloud control is available for remote access, works with Amazon Alexa and Google Home
  • Waterproof grade: IP20

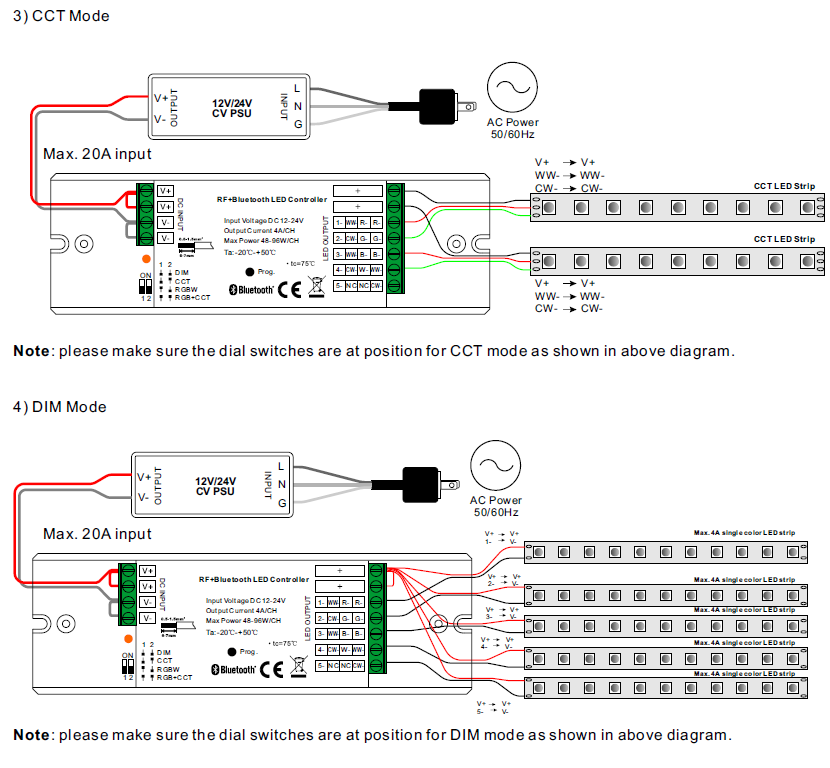

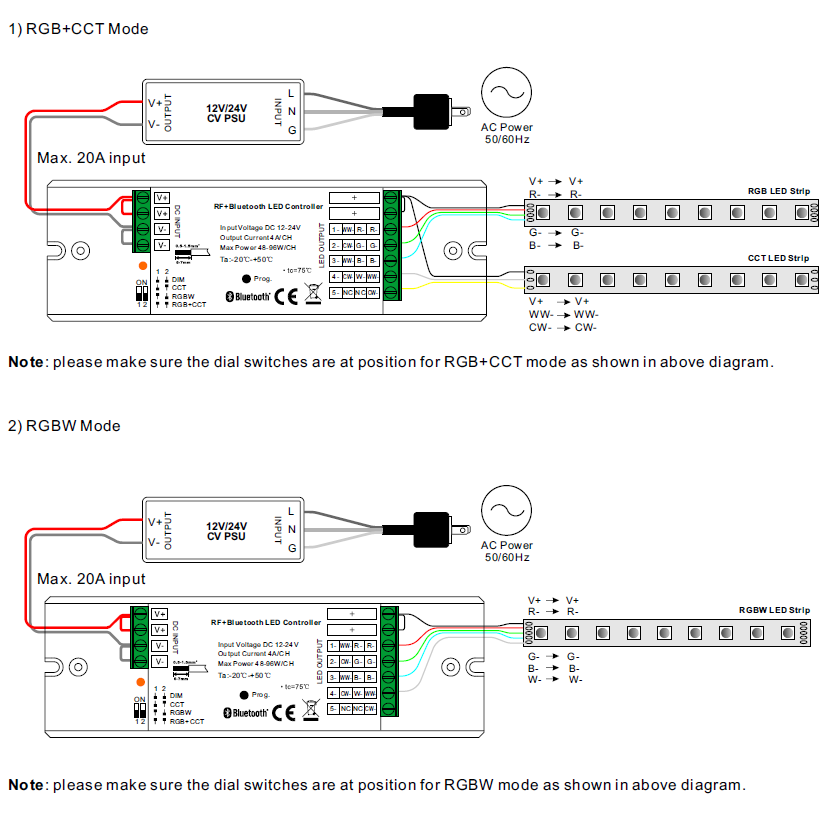

Wiring Diagram for Receiver

Wiring Diagram



Wiring Diagram

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “SR-SB1029-5C”

Your email address will not be published. Required fields are marked *

Shipping & Delivery
Data Sheets

SR-SB1029-5C instruction
