Driver LC 75W 900–1800mA flexC lp EXC 75W 28000684 TRIDONIC
excite series SELV Product description
- Constant current LED driver for luminaire installation
- For luminaires of protection class I and protection class II
- Adjustable output current between 900 and 1,800 mA via ready2mains Programmer or I-SELECT 2 plugs
- Max. output power 75 W
- Up to 91 % efficiency
- Nominal lifetime up to 100,000 h
- 5 years guarantee
Driver LC 7W 150mA fixC pc SR SNC2 7W 28003342 TRIDONIC
essence series
Product description
- Dimmable constant current LED driver (SELV)
- Independent driver with strain-relief housing
- Extra flat housing for constrained installation conditions (small ceiling cut outs and low ceiling voids)
- Dimmable via leading edge and trailing edge phase dimmers
- Dimming range 5 to 100 % (depending on dimmer)
- For luminaires with F or M and MM as per EN 60598, VDE 0710 and VDE 0711
- Max. output power 6.3 W
- Output current 150 mA
- Nominal lifetime up to 50,000 h
- 5 years guarantee

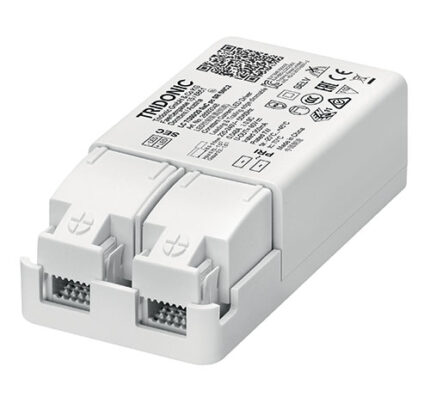

Driver LC 7W 350mA fixC pc SR SNC2 7W 28003348 TRIDONIC
essence series
Product description
- Dimmable constant current LED driver (SELV)
- Independent driver with strain-relief housing
- Extra flat housing for constrained installation conditions (small ceiling cut outs and low ceiling voids)
- Dimmable via leading edge and trailing edge phase dimmers
- Dimming range 5 to 100 % (depending on dimmer)
- For luminaires with F or M and MM as per EN 60598, VDE 0710 and VDE 0711
- Max. output power 7 W
- Output current 350 mA
- Nominal lifetime up to 50,000 h
- 5 years guarantee

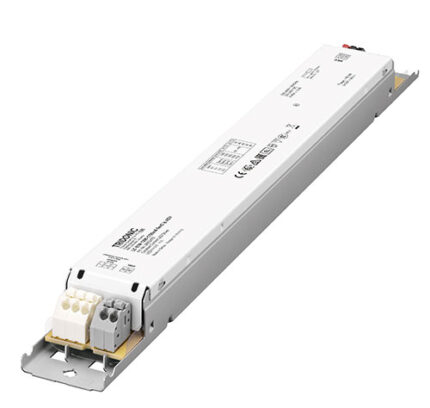

Driver LC 81W 1200-1750mA flexC lp ADV 81W 28002465 TRIDONIC
advanced series SELV Product description
- LED Constant current LED driver for luminaire installation
- New version DC operating with EL marking
- For luminaires of protection class I and protection class II
- Temperature protection as per EN 61347-2-13 C5e
- Output current adjustable between 1,200 – 1,750 mA
- Max. output power 80.5 W
- Up to 87 % efficiency
- Nominal lifetime up to 100,000 h
- 5 years guarantee
Driver LC 81W 1200-1750mA flexC lp ADV 81W 28002475 TRIDONIC
advanced series SELV
Product description
- LED Constant current LED driver for luminaire installation
- New version DC operating with EL marking
- For luminaires of protection class I and protection class II
- Temperature protection as per EN 61347-2-13 C5e
- Output current adjustable between 1,200 – 1,750 mA
- Max. output power 80.5 W
- Up to 87 % efficiency
- Nominal lifetime up to 100,000 h
- 5 years guarantee

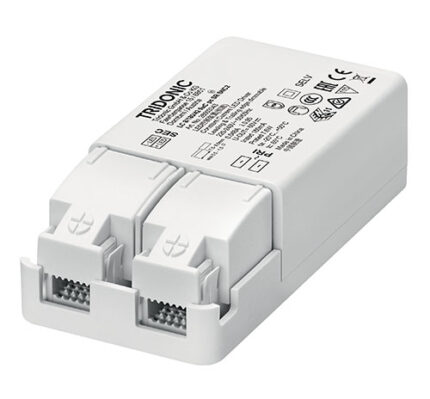

Driver LC 8W 180mA fixC pc SR SNC2 8W 28003343 TRIDONIC
essence series
Product description
- Dimmable constant current LED driver (SELV)
- Independent driver with strain-relief housing
- Extra flat housing for constrained installation conditions (small ceiling cut outs and low ceiling voids)
- Dimmable via leading edge and trailing edge phase dimmers
- Dimming range 5 to 100 % (depending on dimmer)
- For luminaires with F or M and MM as per EN 60598, VDE 0710 and VDE 0711
- Max. output power 7.6 W
- Output current 180 mA
- Nominal lifetime up to 50,000 h
- 5 years guarantee
Driver LC 8W 180mA fixC SC SNC2 8W 87500793 TRIDONIC
essence series
Product description
- Fixed output LED driver
- Can be either used built-in or independent with clip-on strain-relief (see accessory)
- Independent LED driver with cable clamps
- Constant current LED driver
- For luminaires of protection class II
- Temperature protection as per EN 61347-2-13 C5e
- Output current 180 or 200 mA
- Max. output power 8 W
- Nominal lifetime up to 50,000 h
- 5 years guarantee
Driver LC 8W 200mA fixC SC SNC2 8W 87500794 TRIDONIC
essence series
Product description
- Fixed output LED driver
- Can be either used built-in or independent with clip-on strain-relief (see accessory)
- Independent LED driver with cable clamps
- Constant current LED driver
- For luminaires of protection class II
- Temperature protection as per EN 61347-2-13 C5e
- Output current 180 or 200 mA
- Max. output power 8 W
- Nominal lifetime up to 50,000 h
- 5 years guarantee
Driver LC 8W 200mA fixC SR SNC2 8W 87500800 TRIDONIC
essence series
Product description
- Independent LED driver with cable clamps
- Extra flat housing for constrained installation conditions (small ceiling cut outs and low ceiling voids)
- For luminaires with M and MM as per EN 60598, VDE 0710 and VDE 0711
- Temperature protection as per EN 61347-2-13 C5e
- Output current 180 or 200 mA
- Max. output power 8 W
- Nominal lifetime up to 50,000 h
- 5 years guarantee
Driver LCA 100W 1100–2100mA one4all SR PRE 100W 28001571 TRIDONIC
premium series
Product description
- NEW: lumDATA (DALI-2 part ext. 251, 252 and 253)
- Independent dimmable constant current LED driver with strain-relief
- Dimmable via DALI / DALI-2
- Dimming range 1 – 100 % (whole operating window)
- Adjustable output current between 1,100 and 2,100 mA via ready2mains Programmer, I-SELECT 2 plugs or DALI
- Max. output power 100 W
- Up to 92 % efficiency
- Power input on stand-by < 0.2 W
- Nominal lifetime up to 100,000 h
- 5 years guarantee
Driver LCA 100W 24V one4all lp PRE 100W 28001436 TRIDONIC
premium series 24 V – dimmable (IP20)
Product description
- NEW: lumDATA (Luminaire data, Energy reporting and Diagnostics & Maintenance)
- Dimmable 24 V constant voltage LED driver for flexible constant voltage strips
- One4all interface and ready2mains enable different dimming options
- Dimming range 1 to 100 %
- No additional external dimmer is needed
- Suitable for emergency escape lighting systems acc. to EN 50172
- Nominal lifetime up to 50,000 h
- 5 years guarantee
Driver LCA 100W 250–700mA one4all lp PRE 100W 28000661 TRIDONIC
premium series non-SELV
Product description- NEW: lumDATA (DALI-2 part ext. 251, 252 and 253)
- Dimmable built-in constant current LED driver
- Dimming range 1 to 100 %
- For luminaires of protection class I and protection class II
- Output current adjustable between 250 – 700 mA via ready2mains Programmer, I-SELECT 2 plugs or DALI
- Max. output power 100 W
- Up to 93 % efficiency
- Power input on stand-by < 0.15 W
- Nominal lifetime up to 100,000 h
- 5 years guarantee
