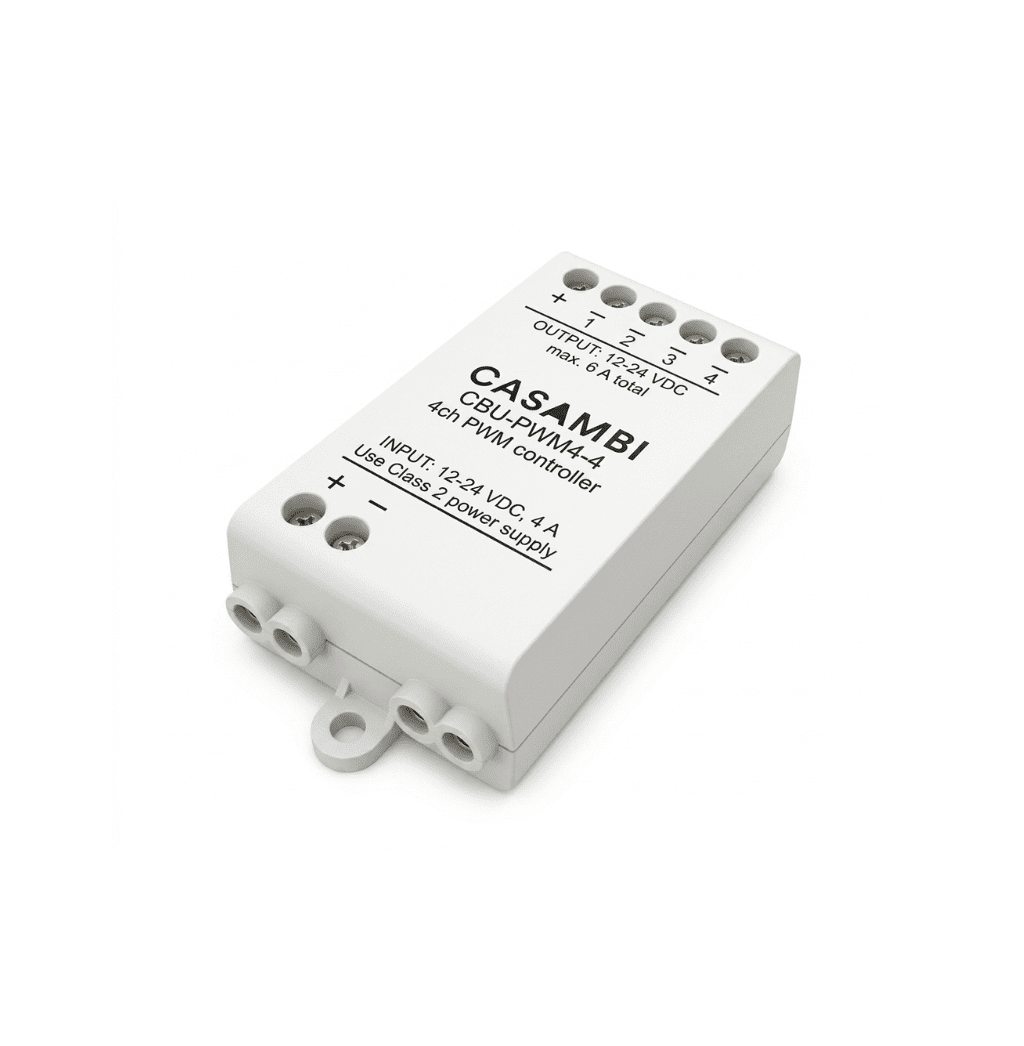

CAS-CBU-PWM4

CBU-PWM4 is a Bluetooth controllable, Casambi enabled four
channel PWM dimmer for constant voltage LED loads, such as
LED strips and constant voltage LED modules. It is connected
between a 12-24 VDC power supply and the constant voltage
LED load.
CBU-PWM4 can control up to four channels making it an
ideal partner for RGBW and tunable white (TW) applications.
The maximum total output current is 6 A which can be freely
divided between 1-4 channels. CBU-PWM4 is protected against
overvoltage, overcurrent and short circuit situations. CBU-PWM4
is not protected against reverse polarity!
CBU-PWM4 can be controlled with Casambi app which can be
downloaded free of charge from Apple App Store and Google
Play Store.
Different Casambi enabled products can be used from a simple
one luminaire direct control to a complete and full featured light
control system where up to 250 units form automatically an
intelligent mesh network.
