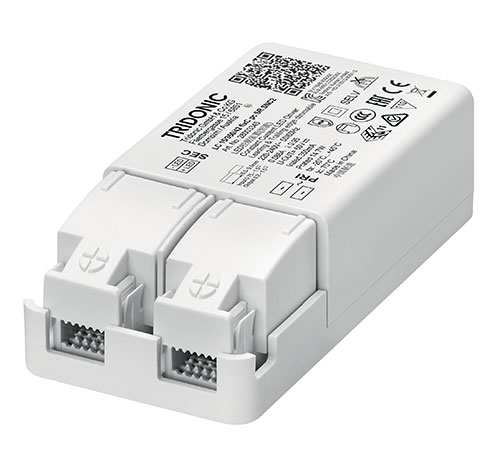

Driver LC 15W 350mA fixC pc SR SNC2 15W 28003345 TRIDONIC
AED0.00
essence series
Product description
- Dimmable constant current LED driver (SELV)
- Independent driver with strain-relief housing
- Extra flat housing for constrained installation conditions (small ceiling cut outs and low ceiling voids)
- Dimmable via leading edge and trailing edge phase dimmers
- Dimming range 5 to 100 % (depending on dimmer)
- For luminaires with F or M and MM as per EN 60598, VDE 0710 and VDE 0711
- Max. output power 14.7 W
- Output current 350 mA
- Nominal lifetime up to 50,000 h
- 5 years guarantee
Description
Housing properties
- Casing: polycarbonate, white
- Type of protection IP20
- Push-in terminals
- 2 separate strain relief parts for input and output cables with highly robust clamps
Functions
- Overload protection
- Short-circuit protection
- No-load protection
- No output current overshoot at mains on/off
